Standardisation is the backbone of the global rail network, ensuring that different rolling stock can operate safely across borders. Here is an overview of three essential UIC publications that govern some of the technical dimensions associated with modern trains:
IRS 50521: Railway applications - Coaches and vans, wagons, traction units - Clearances to be provided at vehicles extremities

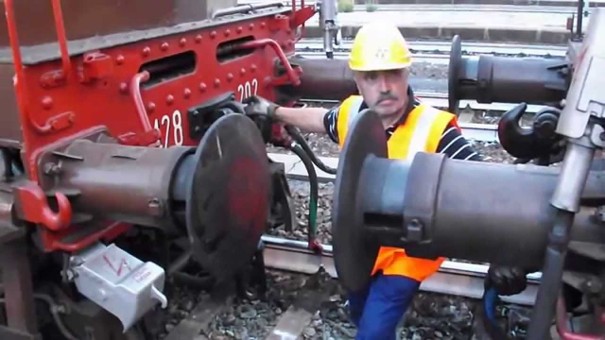

During coupling and uncoupling operations, shunting staff are required to work between vehicle extremities, and around the draw gear and buffers; therefore, sufficient free space must be maintained around these components and any other projecting parts for the protection of railway personnel during train formation activities.
IRS 50521 defines the minimum clearances to be provided at the extremities of vehicles equipped with buffers and screw couples, including coaches and vans, wagons, and traction units. By standardising the spaces reserved for shunters during coupling and uncoupling operations, the document contributes to the safety and interoperability of railway operations while supporting the safe execution of shunting activities.
IRS 50532: Railway applications - Coaches, vans, wagons - Rear end signal brackets and fixed electric signal lamps

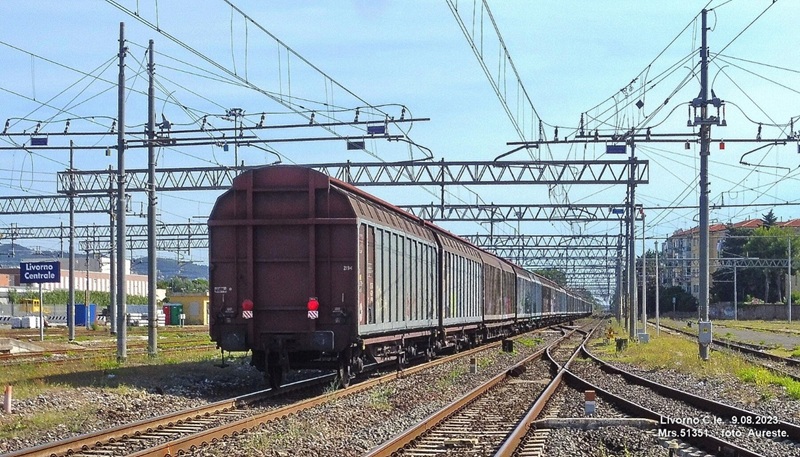

IRS 50532 concerns fixed electric signal lamps and provides the technical specifications for their brightness and positioning at both the front and the rear of coaches and vans. This precision ensures that signal lamps remain visible to locomotives, thereby reducing the risk of collisions and ensuring consistent signalling protocols across all European corridors.
The publication also states the necessity for, and details the positioning of, rear-end signal brackets for coaches, vans, and wagons, standardising the mounting height and angle of those brackets.

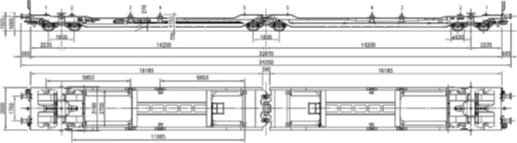

IRS 50572: Railway applications - Wagons composed of permanently coupled units (multiple wagons) and articulated wagons
IRS 50572 governs the technical integration of permanently coupled and articulated units. It addresses the mechanical and structural requirements necessary for coupling permanently coupled wagons, and the regulations concerning the equipment of articulation for articulated wagons. By regulating how these units interact, UIC seeks to minimise the possibility of accidents and, particularly in the case of articulated wagons, to minimise wear and tear and maintenance costs.
These three documents support a more integrated, efficient, and reliable international freight rail system, enabling cross-border operations, reducing technical barriers between railway networks, and contributing to the overall interoperability of the rail sector.
